Database

Introduction

The database is designed to store the sensor data from the embedded devices efficiently. With focus on scalability and integrity, making it modular.

Technology

• MariaDB as the relational database.
• phpMyAdmin for database management.
• Draw.io for ERD diagram concept.
• MySQL Workbench for designing the database schema.

All communication with the database is handled through the API.

Considerations

The technologies were chosen based on the recommendations of the IOT's teachers. While NoSQL was considered, SQL proved to be more efficient for the project's structured approach. Additionally, these technologies are widely used in the industry, ensuring compatibility and best practices.

Database Design

Design Choices & Candidate Keys

The following tables describe each entity in the database, the chosen candidate keys, and the reasoning behind the design decisions.

Device Table

Column	Data Type	Constraints	Candidate Key	Use Case & Design Choice
id	INT AUTO_INCREMENT	PRIMARY KEY	Yes	Ensures each device has a unique identifier.
key	VARCHAR(50)	UNIQUE NOT NULL	Yes	Allows human-friendly lookup (e.g., sensor_hub_1).
name	VARCHAR(100)	UNIQUE NOT NULL	No	Descriptive name for UI, but not used as a key.

Reading Table

Column	Data Type	Constraints	Candidate Key	Use Case & Design Choice
id	INT AUTO_INCREMENT	PRIMARY KEY	Yes	Ensures each reading has a unique identifier.
device_id	INT	FOREIGN KEY	No	Links readings to a specific device.
timestamp	TIMESTAMP	DEFAULT CURRENT_TIMESTAMP	No	Automatically records when a reading is taken.

Sensor Table

Column	Data Type	Constraints	Candidate Key	Use Case & Design Choice
id	INT AUTO_INCREMENT	PRIMARY KEY	Yes	Ensures uniqueness for each sensor type.
key	VARCHAR(50)	UNIQUE NOT NULL	Yes	Used for lookups, prevents duplicate sensor types.
name	VARCHAR(100)	NOT NULL	No	Descriptive name, but not unique enough for indexing.
unit	VARCHAR(10)	NOT NULL	No	Stores unit of measurement (e.g., °C, hPa).

SensorData Table

Column	Data Type	Constraints	Candidate Key	Use Case & Design Choice
id	INT AUTO_INCREMENT	PRIMARY KEY	Yes	Ensures each sensor reading is uniquely stored.
reading_id	INT	FOREIGN KEY	No	Links to the Reading table.
sensor_id	INT	FOREIGN KEY	No	Links to the Sensor table.
value	DECIMAL(7,2)	NOT NULL	No	Stores the sensor measurement with precision.

Setting Table

Column	Data Type	Constraints	Candidate Key	Use Case & Design Choice
id	INT AUTO_INCREMENT	PRIMARY KEY	Yes	Uniquely identifies each setting.
key	VARCHAR(50)	UNIQUE NOT NULL	Yes	Used for lookup in the system.
name	VARCHAR(100)	NOT NULL	No	Descriptive setting name.
value	DECIMAL(10,4)	NULL	No	Stores user-defined value (overrides default).
default_value	DECIMAL(10,4)	NOT NULL	No	Stores the system's fallback setting.

ERD Schema

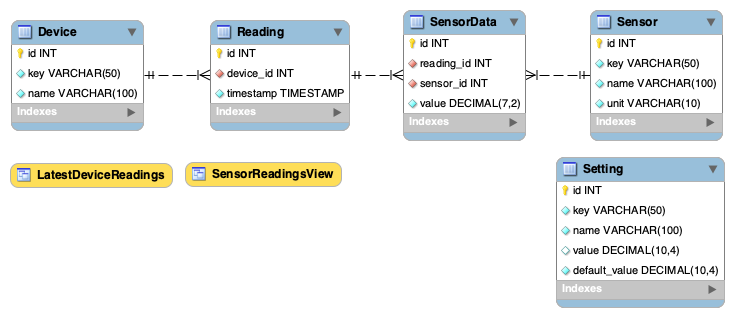

The diagram below represents the Entity-Relationship Diagram (ERD) for the database, illustrating how the tables relate to each other.

---

Database Schema

The following SQL script defines the Schema for the database.

-- Create the Database
CREATE DATABASE IF NOT EXISTS `atmos`;
USE `atmos`;

-- Create Device Table
CREATE TABLE IF NOT EXISTS `Device` (
    `id` INT AUTO_INCREMENT PRIMARY KEY,
    `key` VARCHAR(50) UNIQUE NOT NULL,
    `name` VARCHAR(100) UNIQUE NOT NULL
);

-- Create Reading Table
CREATE TABLE IF NOT EXISTS `Reading` (
    `id` INT AUTO_INCREMENT PRIMARY KEY,
    `device_id` INT NOT NULL,
    `timestamp` TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    FOREIGN KEY (`device_id`) REFERENCES `Device`(`id`) ON DELETE CASCADE
);

-- Create Sensor Table
CREATE TABLE IF NOT EXISTS `Sensor` (
    `id` INT AUTO_INCREMENT PRIMARY KEY,
    `key` VARCHAR(50) UNIQUE NOT NULL,
    `name` VARCHAR(100) NOT NULL,
    `unit` VARCHAR(10) NOT NULL
);

-- Create Sensor Data Table
CREATE TABLE IF NOT EXISTS `SensorData` (
    `id` INT AUTO_INCREMENT PRIMARY KEY,
    `reading_id` INT NOT NULL,
    `sensor_id` INT NOT NULL,
    `value` DECIMAL(7,2) NOT NULL,
    FOREIGN KEY (`reading_id`) REFERENCES `Reading`(`id`) ON DELETE CASCADE,
    FOREIGN KEY (`sensor_id`) REFERENCES `Sensor`(`id`) ON DELETE CASCADE
);

-- Create Setting Table
CREATE TABLE IF NOT EXISTS `Setting` (
    `id` INT AUTO_INCREMENT PRIMARY KEY,
    `key` VARCHAR(50) UNIQUE NOT NULL,
    `name` VARCHAR(100) NOT NULL,
    `value` DECIMAL(10,4) NULL,
    `default_value` DECIMAL(10,4) NOT NULL
);

-- Indexes for performance
CREATE INDEX `idx_sensor_key` ON `Sensor` (`key`);
CREATE INDEX `idx_setting_key` ON `Setting` (`key`);
CREATE INDEX `idx_device_timestamp` ON `Reading` (`device_id`, `timestamp`);
CREATE INDEX `idx_sensor_data_reading` ON `SensorData` (`reading_id`);
CREATE INDEX `idx_sensor_data_sensor` ON `SensorData` (`sensor_id`);

Data Inserts

This section provides predefined data inserts for sensors and system settings, ensuring the project is ready.

Add Arduino Sensors to the Sensor Table

INSERT INTO `Sensor` (`key`, `name`, `unit`) VALUES
    ('dht11_temperature', 'DHT11 Temperature Sensor', '°C'),
    ('dht11_humidity', 'DHT11 Humidity Sensor', '%'),
    ('bh1750_lux', 'BH1750 Light Sensor', 'lux'),
    ('analog_water', 'Analog Water Sensor', 'level'),
    ('bmp180_temperature', 'BMP180 Temperature Sensor', '°C'),
    ('bmp180_pressure', 'BMP180 Pressure Sensor', 'hPa');

Add Arduino Sensors to the Sensor Table

INSERT INTO `Setting` (`key`, `name`, `value`, `default_value`) VALUES
    ('pressure_min', 'Minimum Atmospheric Pressure', NULL, 900),
    ('pressure_max', 'Maximum Atmospheric Pressure', NULL, 1080),
    ('wind_speed_min', 'Minimum Wind Speed', NULL, 0),
    ('wind_speed_max', 'Maximum Wind Speed', NULL, 100),
    ('temperature_min', 'Minimum Temperature', NULL, -10),
    ('temperature_max', 'Maximum Temperature', NULL, 50),
    ('lux_min', 'Minimum Light Intensity (Lux)', NULL, 0),
    ('lux_max', 'Maximum Light Intensity (Lux)', NULL, 1000),

    ('blob_intensity_min', 'Minimum Blob Intensity', NULL, 0.05),
    ('blob_intensity_max', 'Maximum Blob Intensity', NULL, 1),
    ('blob_speed_min', 'Minimum Blob Movement Speed', NULL, 0.01),
    ('blob_speed_max', 'Maximum Blob Movement Speed', NULL, 0.5),

    ('background_noise_scale_min', 'Minimum Background Noise Scale', NULL, 5),
    ('background_noise_scale_max', 'Maximum Background Noise Scale', NULL, 10),
    ('background_height_min', 'Minimum Background Height', NULL, 0.5),
    ('background_height_max', 'Maximum Background Height', NULL, 2.5),
    ('background_speed_min', 'Minimum Background Movement Speed', NULL, 1),
    ('background_speed_max', 'Maximum Background Movement Speed', NULL, 60),
    ('background_brightness_min', 'Minimum Background Brightness', NULL, 0.1),
    ('background_brightness_max', 'Maximum Background Brightness', NULL, 1),

    ('color_temperature_threshold', 'Temperature Threshold for Color Changes', NULL, 10),
    ('color_humidity_brightness_factor', 'Impact of Humidity on Color Brightness', NULL, 1);

Views

Views allow for efficient querying and pre-processing of sensor data, providing structured results without complex SQL joins in API queries.

Latest Sensor Readings Per Device

Fetches the most recent sensor readings per device, ensuring that each device only appears once with its latest values.

SELECT * FROM LatestDeviceReadings;

CREATE VIEW LatestDeviceReadings AS
SELECT
    d.id AS device_id,
    d.name AS device_name,
    s.name AS sensor_name,
    s.unit AS sensor_unit,
    sd.value,
    r.timestamp
FROM SensorData sd
JOIN Reading r ON sd.reading_id = r.id
JOIN Device d ON r.device_id = d.id
JOIN Sensor s ON sd.sensor_id = s.id
WHERE r.timestamp = (
    SELECT MAX(r2.timestamp) FROM Reading r2 WHERE r2.device_id = d.id
)
ORDER BY r.timestamp DESC;

Step-by-Step Guide

This guide shows how to create the database, add a user, and import the SQL script inside the Docker-powered phpMyAdmin environment.

YOUR_DB_NAME is atmos by default, but you can use a different name—just make sure to update the SQL script to reference the correct database.

📌 The full SQL script is available on GitLab.

1. Start phpMyAdmin

1. Run Docker (if not already running).

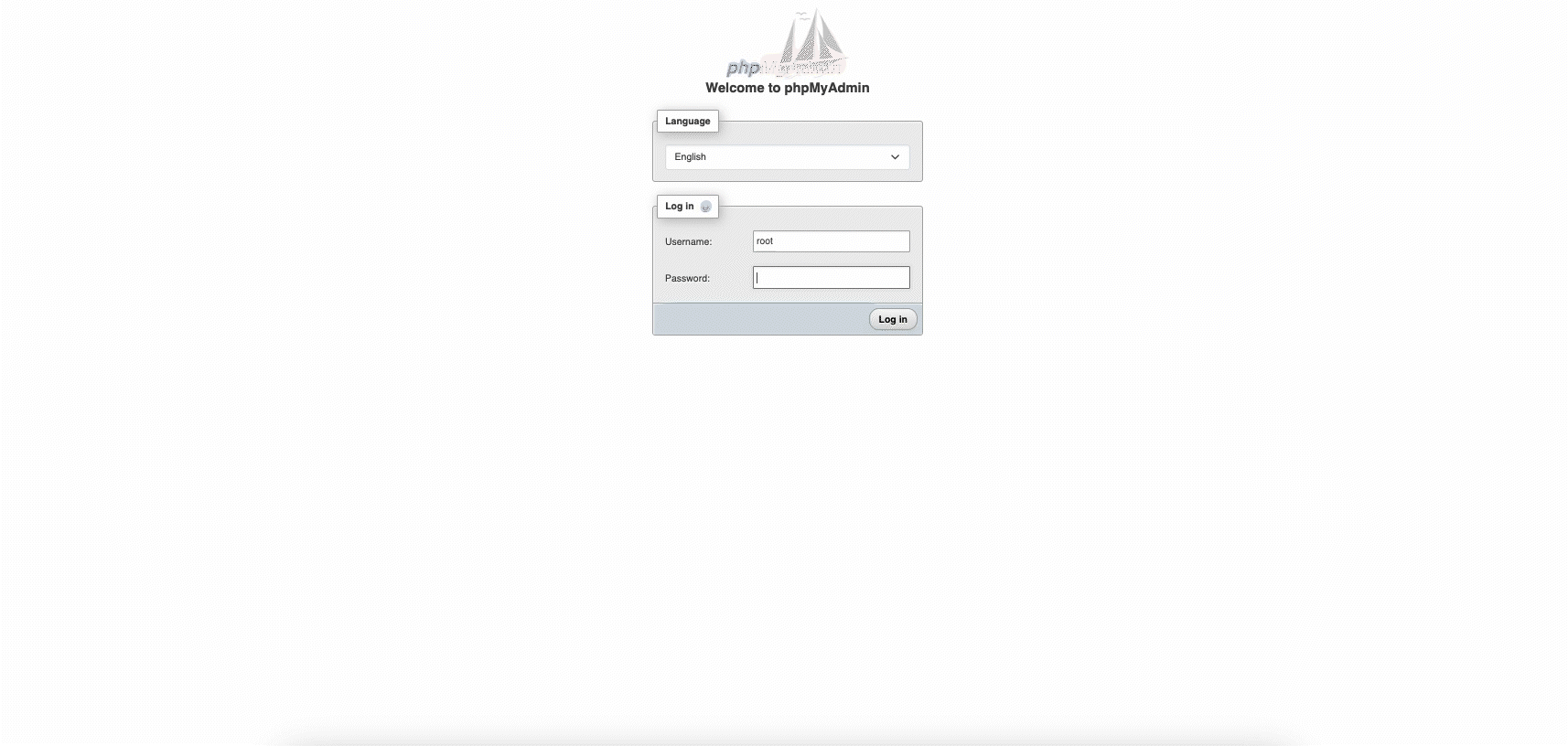

2. Open localhost/phpmyadmin.
3. Log in with root MySQL credentials. (Can be found in the .env in the root of the repository)

2. Create the Database

1. Go to the Databases tab.
2. Enter YOUR_DB_NAME as the database name.
3. Select utf8mb4_general_ci collation.
4. Click Create.

3. Create a New User

1. Navigate to User accounts.
2. Click Add user account.
3. Set:
4. Username: Set a username
5. Host: localhost or % depending on the network.
6. Password: Set a password
7. Click Go to create the user.

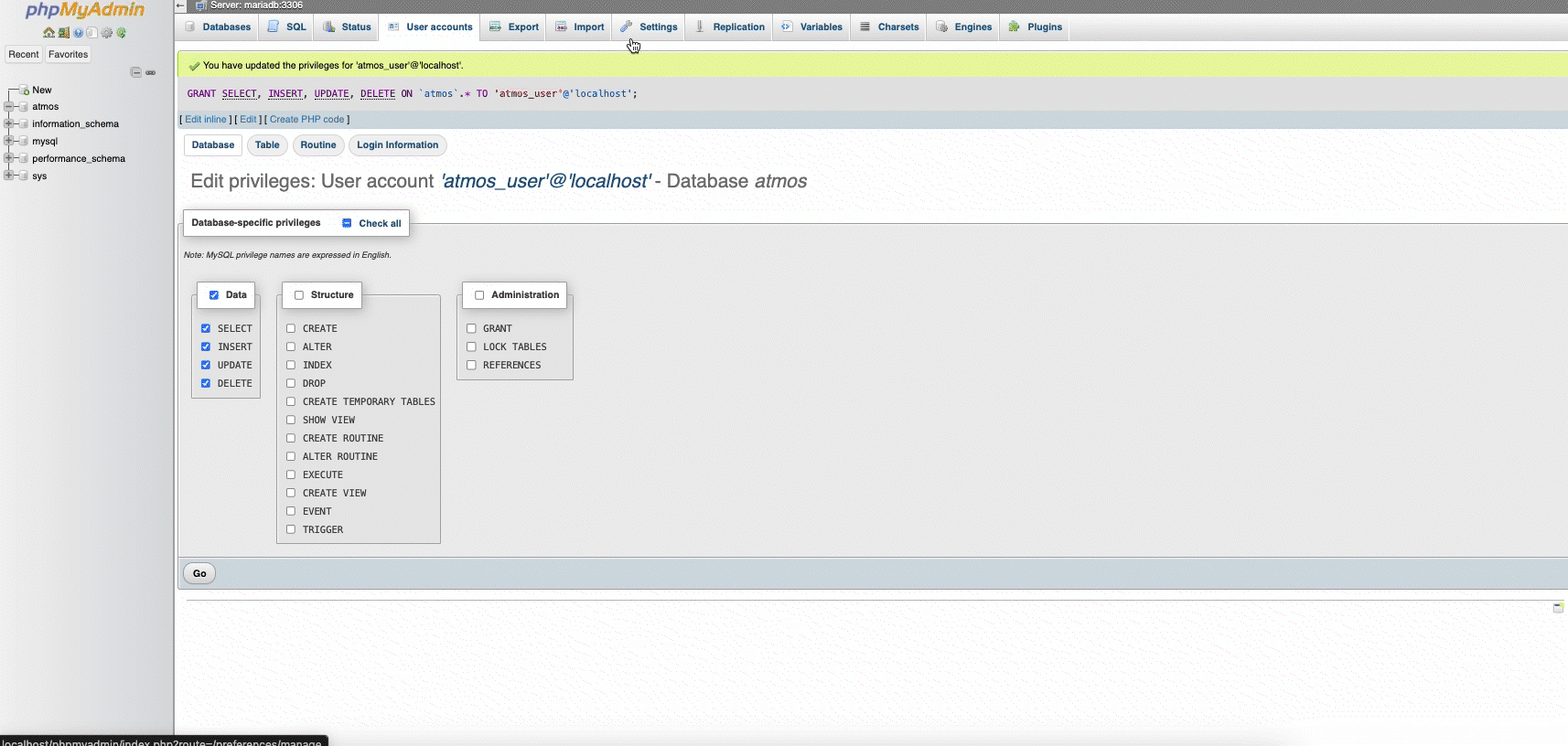

8. Under Database, select Grant privileges on database → Choose atmos.
9. Under Data grant the following privileges:
10. SELECT
11. INSERT
12. UPDATE
13. DELETE
14. Click Go to update the user.

4. Import the SQL Script

1. Go to Import.

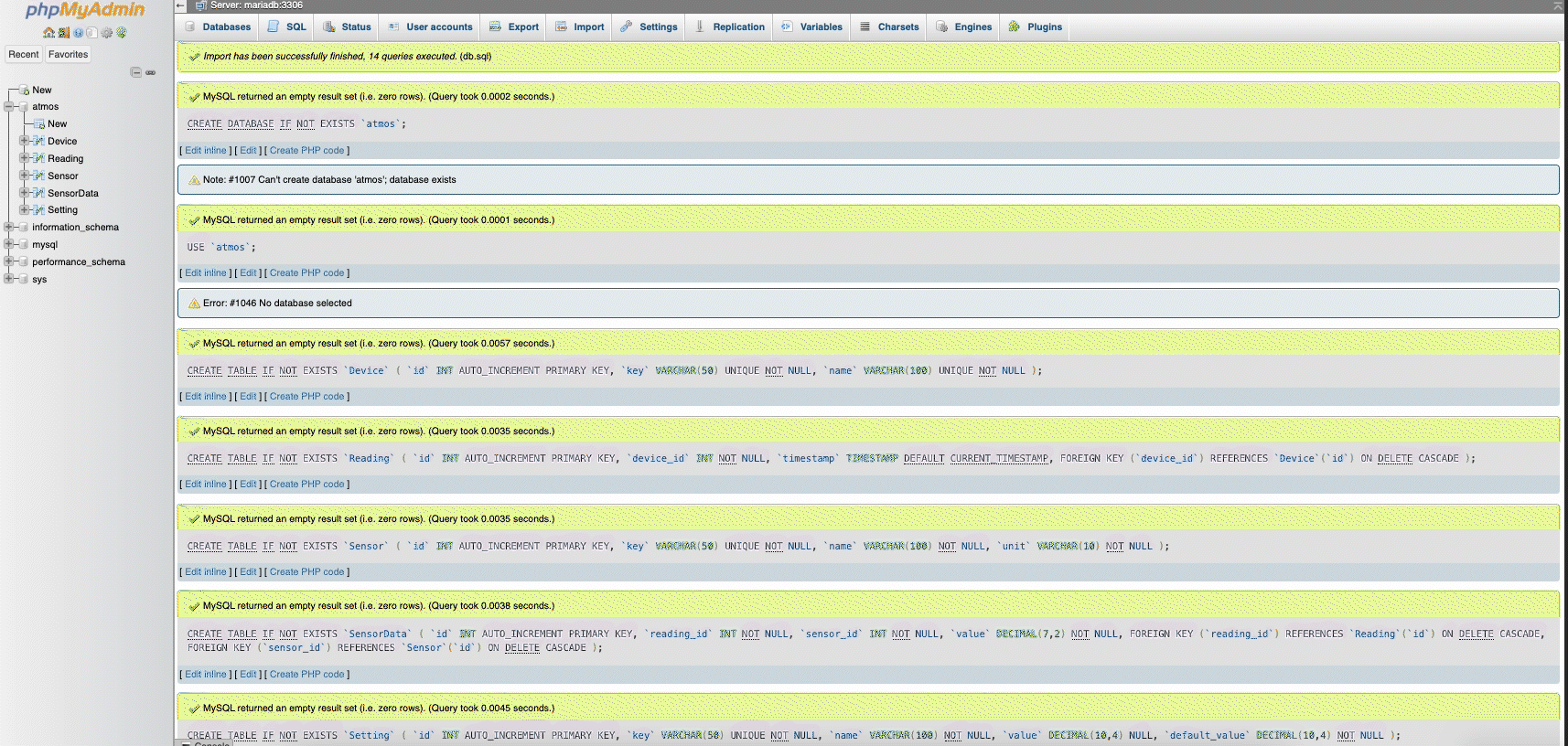

2. Click Choose File → Select the SQL script.
3. Click Go to execute it.

5. Verify the Setup

1. Open the atmos database in phpMyAdmin.
2. Check if all tables exist.
3. Run SELECT * FROM Setting; to test the data.

File

📌 The full SQL script is available on GitLab.
