System Architecture

Introduction

This document provides an overview of the system structure, including hardware, software, databases, and network components. It illustrates how these elements interact and communicate.

System Architecture Diagram (SAD#01 - SAD#16)

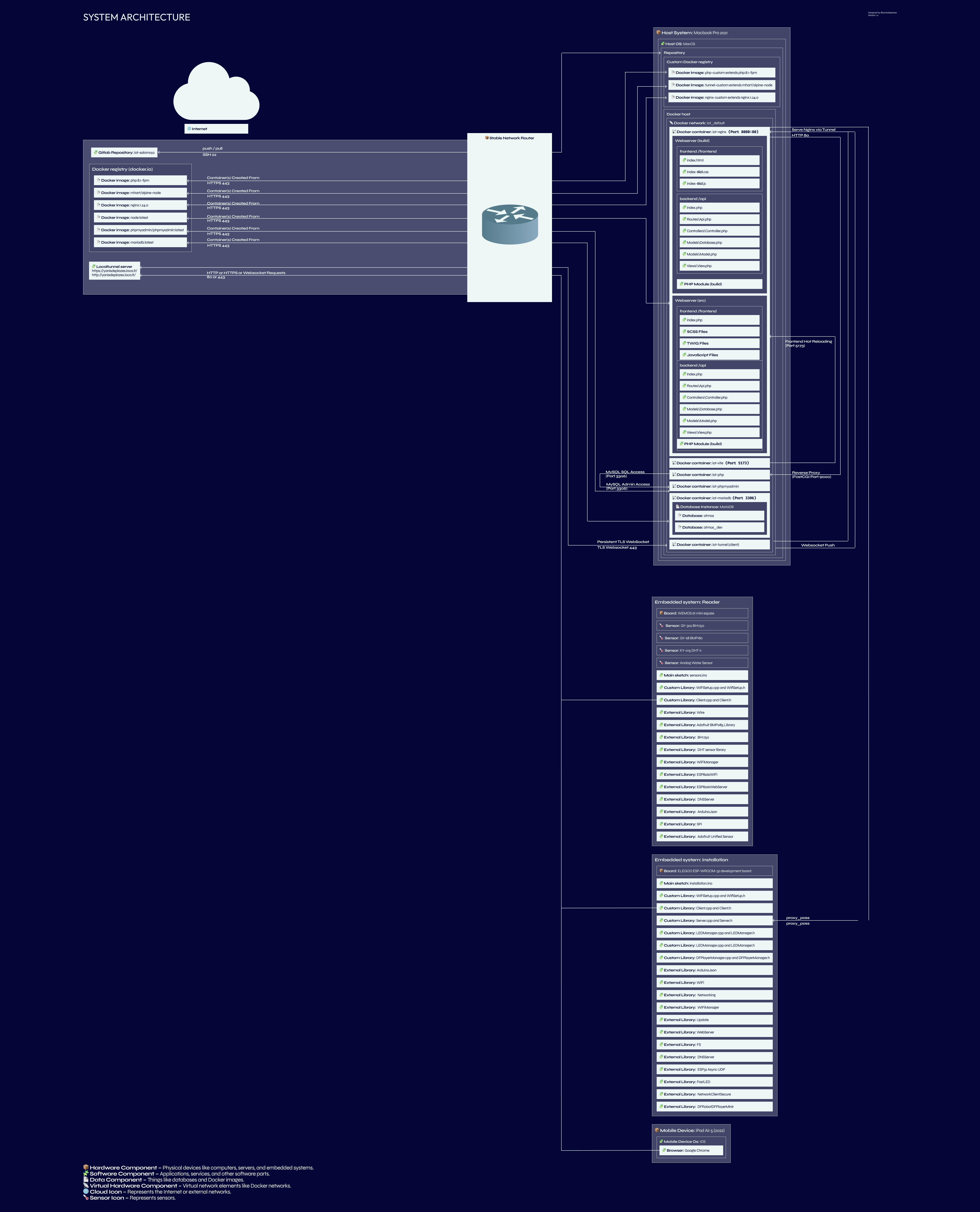

System Architecture Diagram

Open Image

Legend (SAD#05)

The following symbols are used in the diagram:

  • 📦 Hardware Component – Physical devices like computers, servers, and embedded systems.
  • 🧩 Software Component – Applications, services, and other software parts.
  • 📄 Data Component – Things like databases and Docker images.
  • 📡 Virtual Hardware Component – Virtual network elements like Docker networks.
  • 🌐 Cloud Icon – Represents the Internet or external networks.
  • 🌡️ Sensor Icon – Represents sensors.

Components Overview

Embedded Systems (SAD#06)

  • 📦 Hardware Component
  • Includes IoT devices such as ESP32, Raspberry Pi, or similar microcontrollers.
  • Communicates with the Host System or Cloud via MQTT, HTTP, or WebSockets.

Webserver (iot-nginx and iot-nginx-dev) (SAD#07)

  • 🧩 Software Component
  • Serves the frontend and backend.
  • Handles API requests (/api/) and forwards them to iot-php and iot-php-dev using FastCGI (Port 9000).
  • Routes /phpmyadmin/ to iot-phpmyadmin.
  • Uses Vite for hot-reloading in development.
  • Uses Pushstream Websockets for direct communications with frontend and hardware.

Database System (MariaDB) (SAD#08)

  • 📄 Data Component
  • Runs inside iot-mariadb container.
  • Contains two databases:
  • atmos
  • atmos_dev
  • Used by the backend (iot-php) via MySQL (Port 3306).

Docker Registry (Local and docker.io) (SAD#09)

  • 📄 Data Component
  • Stores public and local Docker images:
  • php:8.1-fpm
  • mhart/alpine-node
  • mariadb:latest
  • node:latest
  • phpmyadmin/phpmyadmin:latest
  • nginx:1.24.0
  • php-custom (extends php:8.1-fpm)
  • tunnel-custom (extends mhart/alpine-node)
  • nginx-custom (extends nginx:1.24.0)

Docker Host (SAD#10)

  • 📡 Virtual Hardware Component
  • Runs multiple Docker containers within the iot_default network.
  • Key services:
  • iot-nginx – Webserver (Reverse Proxy)
  • iot-php – Backend API (PHP-FPM)
  • iot-mariadb – Database (MariaDB)
  • phpmyadmin – Database Management Tool
  • iot-tunnel – Public exposure (Localtunnel / SSH-Tunnel)
  • Development environment:
  • iot-vite – Frontend Development Server (hot-reloading)

Host System (MacBook Pro) (SAD#11)

  • 📦 Hardware Component
  • Runs macOS and serves as the primary development environment.
  • Manages Docker containers and connects to GitLab Repository.

Mobile Device (External System) (SAD#12)

  • 📦 Hardware Component
  • Connects to localtunnel server via HTTPS to access the frontend.
  • Uses Google Chrome on an iPad Air (2022, iOS).

Network Access Point (SAD#13)

  • 📦 Stable Network Router
  • Represents the Router Access Point.
  • Connects the Host System, Mobile Device, and Embedded Systems to the Internet/Intranet (SAD#15).

Gitlab repository (SAD#14)

  • 📦 Gitlab repository
  • Allows push and pull to gitlab via SSL.

Internet/Intranet (SAD#15)

  • 🌐 Internet/Intranet
  • Different Network abstractions allowing access over the Internet.
  • Provides access to external services:

Localtunnel (SAD#16) (We don't have an SSH Tunnel?)

  • 🧩 Localtunnel server and 🧩 Localtunnel Client
  • LocalTunnel – Cloud endpoint
  • LocalTunnel – Runs locally in Docker
  • Allows Direct communication over HTTPS and HTTP to the Services.
  • Serves Serve Nginx via Tunnel on port 80

Communication Flow Overview (SAD#04)

Source Destination Protocol Port Purpose
Host Repository GitLab Repository SSH 22 Push Code
GitLab Repository Host Repository SSH 22 Pull Code
Mobile Device: Browser LocalTunnel Server HTTPS 443 Public Access to Local Services
Embedded System Reader LocalTunnel Server HTTPS 443 Fetch from Public Tunnel (Client.cpp)
Embedded System Installation LocalTunnel Server HTTPS 443 Fetch from Public Tunnel (Client.cpp)
iot-nginx Embedded System Installation HTTPS 443 Server Push (PushStream)
LocalTunnel Server LocalTunnel Client Persistent TLS WebSocket 443 Tunnel Transport Layer
LocalTunnel Client iot-nginx HTTP 80 Serve Nginx via Tunnel
iot-nginx iot-php FastCGI 9000 API Backend (Prod)
iot-php iot-mariadb MySQL 3306 Database Access (Prod)
iot-phpmyadmin iot-mariadb MySQL 3306 Admin UI DB Access
Docker Host Docker Registry (remote) HTTPS 443 Admin UI DB Access
Docker Host Docker Registry (local) HTTPS 443 Pull/push custom local images
LocalTunnel Client LocalTunnel Server WebSocket Push (TLS) 443 Push updates through tunnel (return)
